TOPIC:

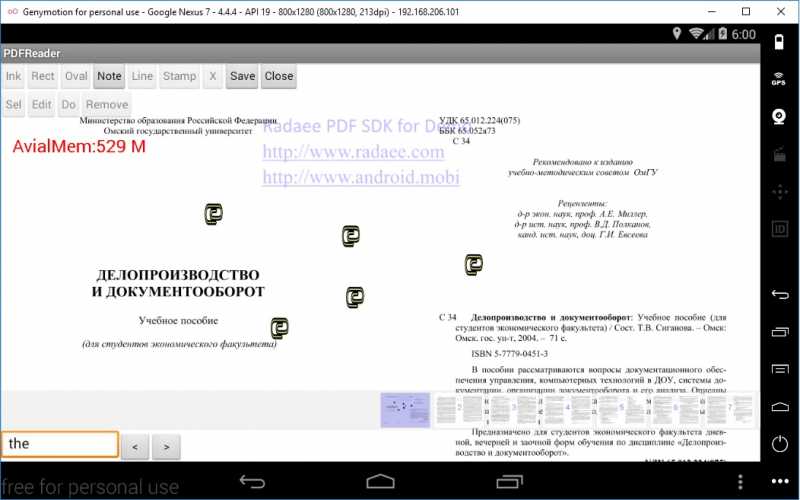

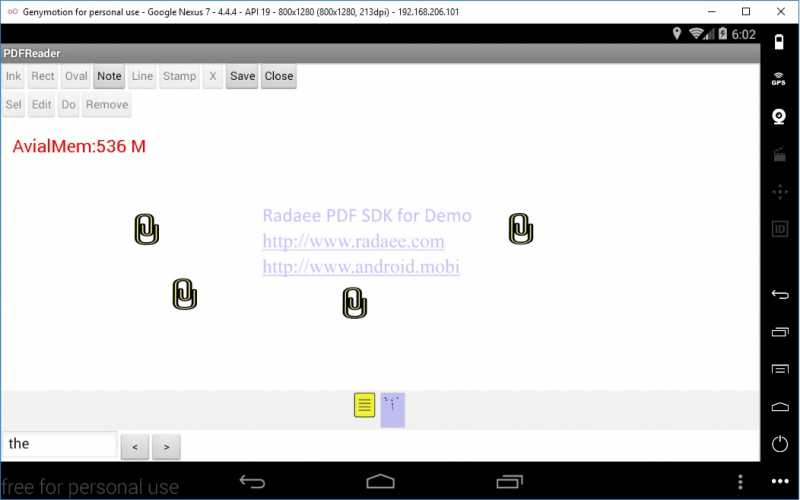

Hi! We have a small problem. When we use landscape orientation pdf - clip inverted. Portrait orientation pdf - normal.
The code in your project.
Project PDFReader. Class PDFReader.java. Method onTouchNote(MotionEvent event):
private boolean onTouchNote(MotionEvent event) {
if (m_status == STA_NOTE) {
switch (event.getActionMasked()) {
case MotionEvent.ACTION_UP:
PDFPos pos = m_view.vGetPos((int) event.getX(), (int) event.getY());
PDFVPage vpage = m_view.vGetPage(pos.pageno);
Page page = vpage.GetPage();
if (page != null) {
//float pt[] = new float[2];
//pt[0] = pos.x;
//pt[1] = pos.y;
//page.AddAnnotText(pt);
~~~~~~~~~~~~~add this code~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
float pt1[] = new float[4];
pt1[0] = pos.x;
pt1[1] = pos.y;
pt1[2] = pt1[0] + 20;
pt1[3] = pt1[1] + 25;
page.AddAnnotAttachment("/storage/emulated/0/Download/myPDF.pdf", 2, pt1);
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
m_view.vRenderSync(vpage);
if (m_listener != null)
m_listener.OnPageModified(vpage.GetPageNo());
}
break;
}
return true;
}
return false;
}

Can we somehow affect this?

Hi,
can you reproduce the issue with all the annotation types?
Can you reproduce the issue with all your pdfs? Can you please send us one of these?
I think that the problem is related to the orientation of the pdf itself.

Hi. Yes. This problem is related to the orientation of the pdf itself.
The only problem with attached annotations. Text annotation is good.
www.dropbox.com/s/rtq3azivs6lprq4/12345.zip?dl=0

---

> pdf files

Hi,
sorry for the late reply.

We have sent the issue to our developers and we'll get back to you as soon as possible.

Hi,
we have just published a new 3.9RC1 version of the library that solves the issue.
You can download it here : www.radaeepdf.com/download/download-andr...ile/64-radaeepdf-3-9
