Add a button on top side corner of the pdf page.

Rajat Singla
Topic Author
Offline
New Member

9 years 1 month ago #11842 by Rajat Singla

Add a button on top side corner of the pdf page. was created by Rajat Singla

Hii.

Can we add a button on the top side corner of the pdfPage.
if yes, then how?

Thanks.

emanuele
Offline
Banned

9 years 1 month ago #11844 by emanuele

Replied by emanuele on topic Add a button on top side corner of the pdf page.

Hi,

you can consider the pdf page like a normal view and add objects with standard development methods.

Rajat Singla
Topic Author
Offline
New Member

9 years 1 month ago - 9 years 1 month ago #11845 by Rajat Singla

Replied by Rajat Singla on topic Add a button on top side corner of the pdf page.

Hii, thanks for the reply.

I tried that, but when i need to add button where the page starts.

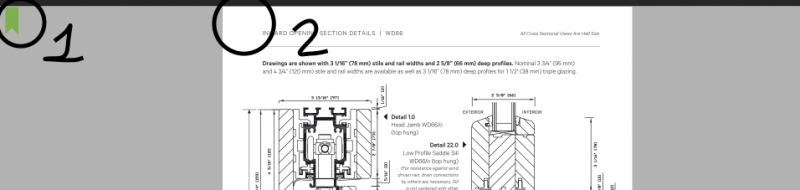

Please look at the attachment below.

I need to add the button at position 2.
But using above approach, button is set at posiiton 1.

Last edit: 9 years 1 month ago by Rajat Singla.

emanuele
Offline
Banned

9 years 1 month ago #11848 by emanuele

Replied by emanuele on topic Add a button on top side corner of the pdf page.

Hi,

to get the correct position you should calculate it with something like:

Code:

//Get the vPage
PDFVPage *vvpage = [m_view vGetPage:m_cur_page];
    //Get the page position
    int x = [vvpage GetVX:[m_view vGetX]];
    int y = [vvpage GetVY:[m_view vGetY]];
    //Get the correct position using scale
    float logicx = x/m_scale;
    float logicy = y/m_scale;
    //Use contentOffset to get the view position on the scrollView
    CGRect exampleRect = CGRectMake(logicx + self.contentOffset.x, logicy + self.contentOffset.y, 50, 50);

Rajat Singla
Topic Author
Offline
New Member

9 years 1 month ago #11849 by Rajat Singla

Replied by Rajat Singla on topic Add a button on top side corner of the pdf page.

Thanks, that was some good advise.

But i need a solution where we can add button on PDFVPage itself, not on the view it is contained in.

emanuele
Offline
Banned

9 years 1 month ago #11865 by emanuele

Replied by emanuele on topic Add a button on top side corner of the pdf page.

Hi,
PDFVPage is a NSObject and not contains a view, but draw the page content on a canvas using CG methods.
If you want to add objects on a page, you should use annotations or add subviews on the scrollview with the sample code of the previous post.
